Introduction

Xilinx FPGA Programming is the process of configuring and programming Field-Programmable Gate Arrays (FPGAs) produced by Xilinx, a leading manufacturer of programmable logic devices. FPGAs are semiconductor devices that can be reprogrammed and changed after manufacture, allowing designers to construct digital circuits and functionality based on their individual needs.

Table of content

1. What is Xilinx FPGA Programming?

A field-programmable gate array (FPGA) is an electrical device with digital logic circuits that can be programmed to perform certain functions. Because the logic in the FPGA is designed specifically for your application, it can perform this task faster and with less power than software instructions executing on a general-purpose application processor. A system-on-chip, or SoC FPGA, is an FPGA with a CPU integrated.

2. How Does Xilinx FPGA Programming Work?

Xilinx FPGA Programming uses an HDL to manipulate circuits based on the device's desired capabilities. The method differs from programming a GPU or CPU in that you are not building a program that will execute sequentially. Rather, you use an HDL to design circuits and physically modify hardware to accomplish what you want.

The method is similar to programming software in that you create code, which is converted into a binary file and loaded onto the FPGA. However, the HDL results in physical changes to the hardware rather than just optimizing the device to run the software.

A program on an FPGA assembles lower-level elements such as logic gates and memory blocks that work together to accomplish a task. Because you're altering the hardware from the ground up, FPGAs provide a lot of versatility. Depending on the workload, you can change basic features like memory and battery utilization.

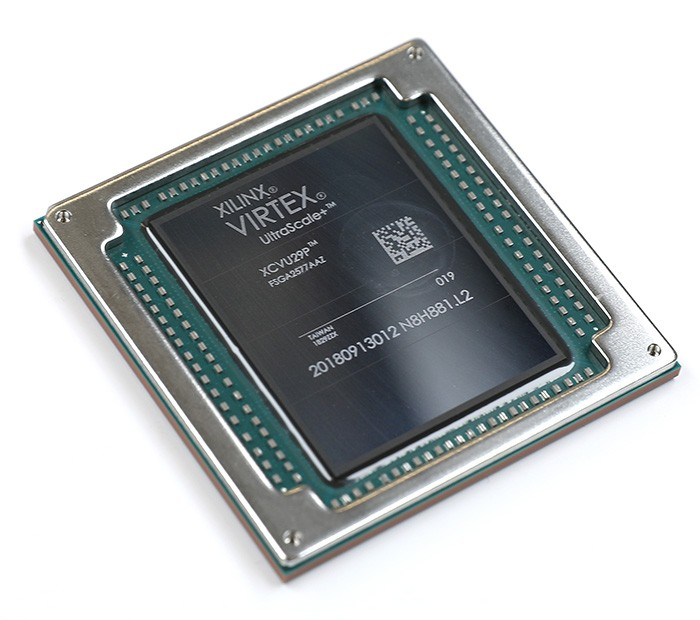

Figure1-How Does Xilinx FPGA Programming Work

3. Which languages are used for Xilinx FPGA Programming?

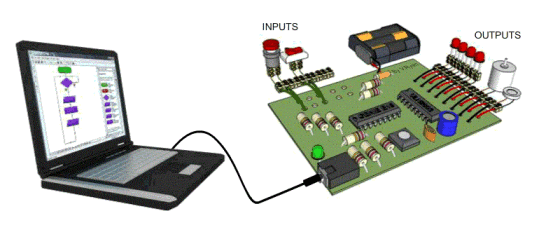

Figure2-Which languages are used for Xilinx FPGA Programming

It seems that FPGAs are commonly used by chip designers rather than software developers. After all, the majority of HDLs used to produce FPGA code are lower-level languages that hardware experts are probably more familiar with than software programmers. However, some HDLs are more similar to conventional software languages than you may expect.

When we say "programming" about FPGAs, we don't mean the same thing as generating software because of how the program is configured and executed. However, using this word implies that generating and running FPGA code is akin to creating a software algorithm. Previously, it was believed that FPGAs could only be programmed by hardware engineers who designed circuits. Today, this is no longer the case.

Software developers can program FPGAs in their favorite languages using unified software platforms, even if they are unfamiliar with HDLs. That alleviates the stress of transitioning to a new programming language and allows software developers to focus on concepts rather than hardware. These platforms work by translating higher-level languages to lower-level ones, allowing an FPGA to perform the needed function. FPGAs can be programmed using the following languages and unified software platforms:

AI frameworks like TensorFlow and Pytorch - With Vitis AI, AI scientists may now assemble their trained deep learning models from TensorFlow or Pytorch for FPGA acceleration. This not only eliminates the requirement for low-level hardware programming, but it also delivers blazing-fast compilation times in minutes, which are comparable to the typical software compilation experience using CPUs and GPUs.

C and C++ - High-level synthesis (HLS) has enabled the use of C-based languages for FPGA design. The AMD Vivado™ HLS compiler optimizes C and C++ applications by leveraging technologies shared with standard and specialized processors. This enables software engineers to optimize code without having to cope with the constraints of limited memory space or processing resources.

Python - Designers can use the Python language and tools to construct high-performance apps and program FPGAs with PYNQ, AMD's open-source initiative that simplifies the use of AMD platforms.

Other popular HDLs are often used in Xilinx FPGA Programming today. Here's a quick breakdown of their names and primary attributes:

Lucid -This language was designed exclusively for FPGAs and avoids some of the drawbacks of more ancient languages like Verilog.

VHDL -This language, abbreviated VHSIC (Very High-Speed Integrated Circuits) Hardware Description Language, debuted in the 1980s and was based on Ada and Pascal.

Verilog - Verilog, the first HDL to be designed, is used mostly for test analysis and verification. The core of this language was built on C.

4. How to Start Xilinx FPGA Programming?

4.1 Setting up the development environment

Before you can begin programming Xilinx FPGAs, you have to first set up your development environment. This entails installing the essential software and setting up your PC to operate with Xilinx tools.

The first step is to download and install Xilinx Vivado Design Suite. This software package covers all of the tools required to design, simulate, and implement your FPGA applications. It also includes a graphical user interface (GUI) to facilitate development.

Vivado offers a comprehensive suite of tools for designing, developing, and debugging FPGA designs. After installing Vivado, you must configure it to function with a specific Xilinx FPGA board. This includes creating board files and device constraints, which contain information about the FPGA you will be utilizing. The Xilinx website has thorough material and tutorials on configuring Vivado for your board.

In addition to Vivado, you will need to install the FPGA board's drivers and development tools. These tools allow you to program FPGAs and communicate with them via hardware interfaces. Similarly, the Xilinx website is an excellent place to obtain tools and drivers for your board.

Setting up a development environment may appear difficult initially, but with the correct resources and assistance, it can be a straightforward process. Once everything is installed and configured, you may begin designing and programming the FPGAs.

Figure3-Vivado

4.2 Basics of hardware design using Xilinx tools

With your development environment set up, it's time to study the fundamentals of hardware design with Xilinx tools. Hardware design entails constructing a digital circuit with a Hardware Description Language (HDL) like VHDL or Verilog.

Xilinx offers rich documentation and courses on HDL design, which teach you the syntax and principles of these languages. You'll learn how to define entities, specify the behavior of your circuit, and describe the relationships between various components.

Once you're familiar with HDL design, you can begin using Xilinx tools to construct your hardware designs. Vivado has a design editor that lets you graphically develop and alter circuits. You can add logic gates, flip-flops, multiplexers, and other components to create the functionality you want.

4.3 Writing and compiling code for Xilinx FPGAs

After constructing your hardware circuit, the following step is to develop the code that defines how it works. Using a text editor, you will write HDL code that specifies your circuit's inputs, outputs, and internal logic.

Xilinx offers both VHDL and Verilog, allowing you to use the most comfortable language. The code you write will be built and synthesized into a bitstream file that contains the FPGA's configuration data.

The compilation process entails translating your HDL code into a netlist, which is a representation of your circuit's logic gates and interconnections. The netlist is then optimized and mapped to the FPGA's resources, resulting in a configuration file that can be put onto the device.

4.4 Implementing and debugging your design

After you have the bitstream file for your design, you may begin implementing it on the FPGA. This entails configuring the FPGA using the produced configuration file and programming the logic blocks and interconnects to complete your hardware design.

Xilinx offers tools to assist you in this process, such as the Vivado Hardware Manager. This utility lets you connect to your FPGA board and program it using the bitstream file. You may also utilize the Hardware Manager to monitor signals, do interactive debugging, and evaluate the performance of your design.

Issues and failures are typical during the implementation and debugging phases. Xilinx tools provide extensive debugging features, including as waveform viewers and signal analyzers, to assist you in identifying and resolving design issues.

Figure4-Implementing and debugging your design

4.5 Testing and verifying your FPGA design

Once your concept has been developed and debugged, it is critical to properly test and validate its functionality. Xilinx offers simulation tools that enable you to evaluate your design in a virtual environment, eliminating the requirement for physical hardware.

You can use the Vivado Simulator to develop test benches that simulate your design's inputs and outputs. This helps you to ensure that your circuit performs as planned under a variety of settings and scenarios.

In addition to simulation, Xilinx provides hardware co-simulation capabilities. This connects your FPGA board to external devices or test equipment, allowing you to test and debug in real-time.

Conclusion

Xilinx FPGA Programming is a comprehensive process that involves several key steps, from understanding the basics of FPGA technology to successfully implementing and verifying a customized design. This journey begins with a solid grasp of the fundamental concepts behind Xilinx FPGA Programming, progresses through understanding the inner workings of Xilinx FPGA Programming, and extends to the practical aspects of setting up a development environment. The choice of programming languages, including hardware description languages like Verilog or VHDL, plays a crucial role in expressing the desired functionality of the FPGA.
