Introduction
ST (Standard Microelectronics) model STM8S003F3P6 (click to buy now) belongs to an 8-bit MCU single-chip microcomputer, which is an 8-bit microcontroller with 8kbytes Flash program memory, plus integrated real data EEPROM. The STM8S Microcontroller Family Reference Manual (RM0016) refers to devices in this family as low-density. In this post, we will learn about STM8S103F3P6 pinout, CAD Models, features, and applications.
STM8S103F3P6 Programming Development Board Installation Compile And Debugging | STM8 coding tutorial
Catalog
STMicroelectronics' STM8S003F3P6 Value Line 8-bit microcontrollers offer 8KB of Flash program memory, as well as integrated true-data EEPROM. The STM8S003F3P6 Value Line devices offer the following benefits: performance, robustness, and reduced system cost. Real data EEPROM supports up to 100,000 write/erase cycles, advanced core, and peripherals manufactured with state-of-the-art technology with 16MHz clock frequency, powerful I/O, an independent watchdog with independent clock ensure device performance, and a Robust source and clock security system. System cost is reduced due to high system integration with the internal clock oscillator, watchdog, and brown-out reset.

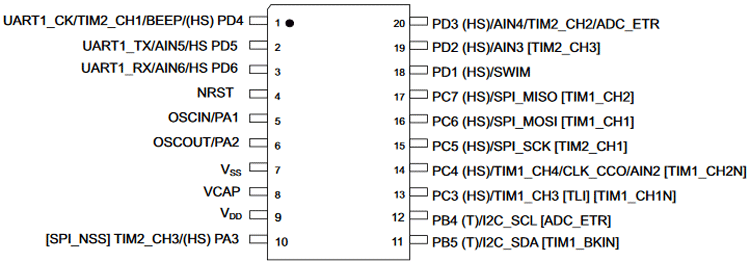

Figure1-STM8S003F3P6 Pinout
Pin no. |
Pin name |
Type |
The main function (after reset) |
TSSOP20 |
|
|
|
1 |
PD4/ BEEP/ TIM2_ CH1/ UART1 _CK |
I/O |
Port D4 |
2 |
PD5/ AIN5/ UART1 _TX |
I/O |
Port D5 |
3 |
PD6/ AIN6/ UART1 _RX |
I/O |
Port D6 |
4 |
NRST |
I/O |
Reset |
5 |
PA1/ OSCIN |
I/O |
Port A1 |
6 |
PA2/ OSCOUT |
I/O |
Port A2 |
7 |
VSS |
S |
Digital ground |
8 |
VCAP |
S |
1.8 V regulator capacitor |
9 |
VDD |
S |
Digital power supply |
10 |
PA3/ TIM2_ CH3 [SPI_ NSS] |
I/O |
Port A3 |
11 |
PB5/ I2C_ SDA [TIM1_ BKIN] |
I/O |
Port B5 |
12 |
PB4/ I2C_ SCL |
I/O |
Port B4 |
13 |
PC3/ TIM1_CH3 [TLI] [TIM1_ CH1N] |
I/O |
Port C3 |
14 |
PC4/ CLK_CCO/ TIM1_ CH4/AIN2/ [TIM1_ CH2N] |
I/O |
Port C4 |
15 |
PC5/ SPI_SCK [TIM2_ CH1] |
I/O |
Port C5 |
16 |
PC6/ SPI_MOSI [TIM1_ CH1] |
I/O |
Port C6 |
17 |
PC7/ SPI_MISO [TIM1_ CH2] |
I/O |
Port C7 |
18 |
PD1/ SWIM |
I/O |
Port D1 |
19 |
PD2/AIN3/ [TIM2_ CH3] |
I/O |
Port D2 |
20 |
PD3/ AIN4/ TIM2_ CH2/ ADC_ ETR |
I/O |
Port D3 |

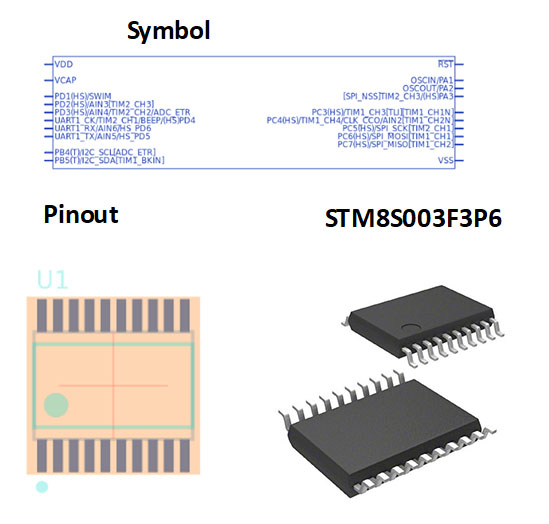

Figure2-STM8S003F3P CAD Models
(1) Core
(2) Memories
(3) Clock, reset, and supply management
– Low-power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
– Permanently active, low-consumption power-on and power-down reset
(4) Interrupt management
(5) Timers
(6) Communications interfaces
(7) Analog-to-digital converter (ADC)
(8) I/O s
(9) Development support

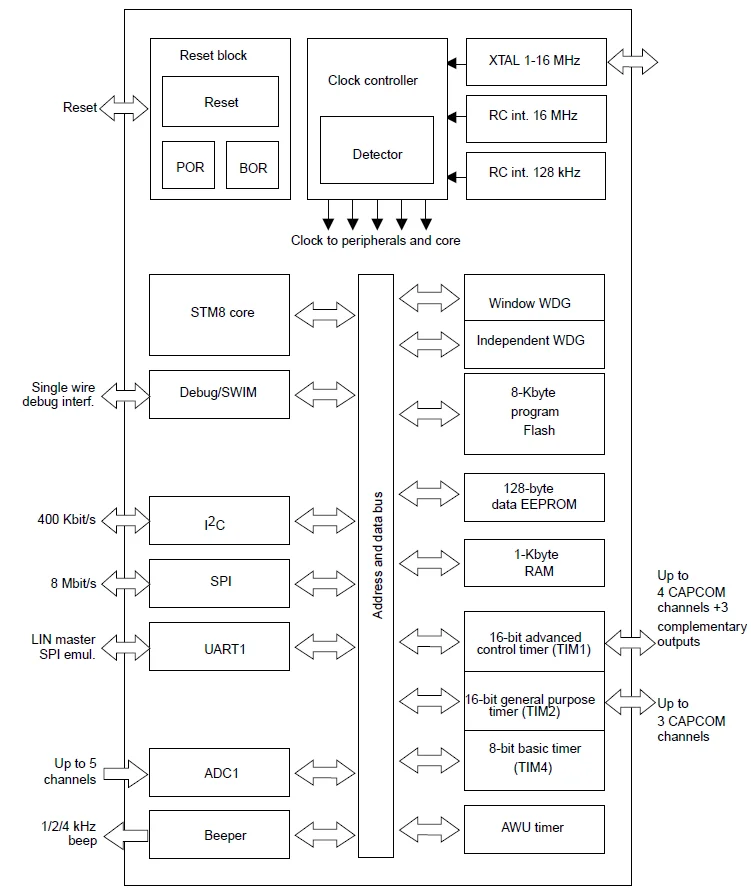

Figure3-STM8S003F3P6 Block Diagram
CD74HC4067SM96 is widely used in security systems, chemical production, factory automation, motor and motion control, HVAC and building automation networks, network security stations and other fields.
Brand |
ST (STMicroelectronics) |
Product category |
8-bit MCU microcontroller |
Series |
STM8S |
Whether lead-free |
lead-free / in line with the requirements of the Restriction of Hazardous Substances Directive (RoHS) |
Installation type |
SMT |
Package/Shell |
TSSOP20_6.5X4.4MM |
Working temperature |
-40~+85℃ |
Interfaces |
I²C, IrDA, LINbus, SPI, UART/USART |
Part Status |
Active |
CPU core |
STM8S |
Total number of I/O ports |
16 |
Program space capacity |
8KB |
Program space type |
FLASH |
Working voltage (range) |
2.95~5.5V |
Clock Source |
Internal |
Memory RAM capacity |
1x8KB |
EEPROM capacity |
128x8B |
Length x width/dimensions |
6.50 x 4.40mm |
Original Manufacturer |
STMicroelectronics |
Supply voltage |
2.95~5.5V |
Figure4-STM8S003F3P6 Block Diagram
Figure5-STM8S003F3P6 Block Diagram

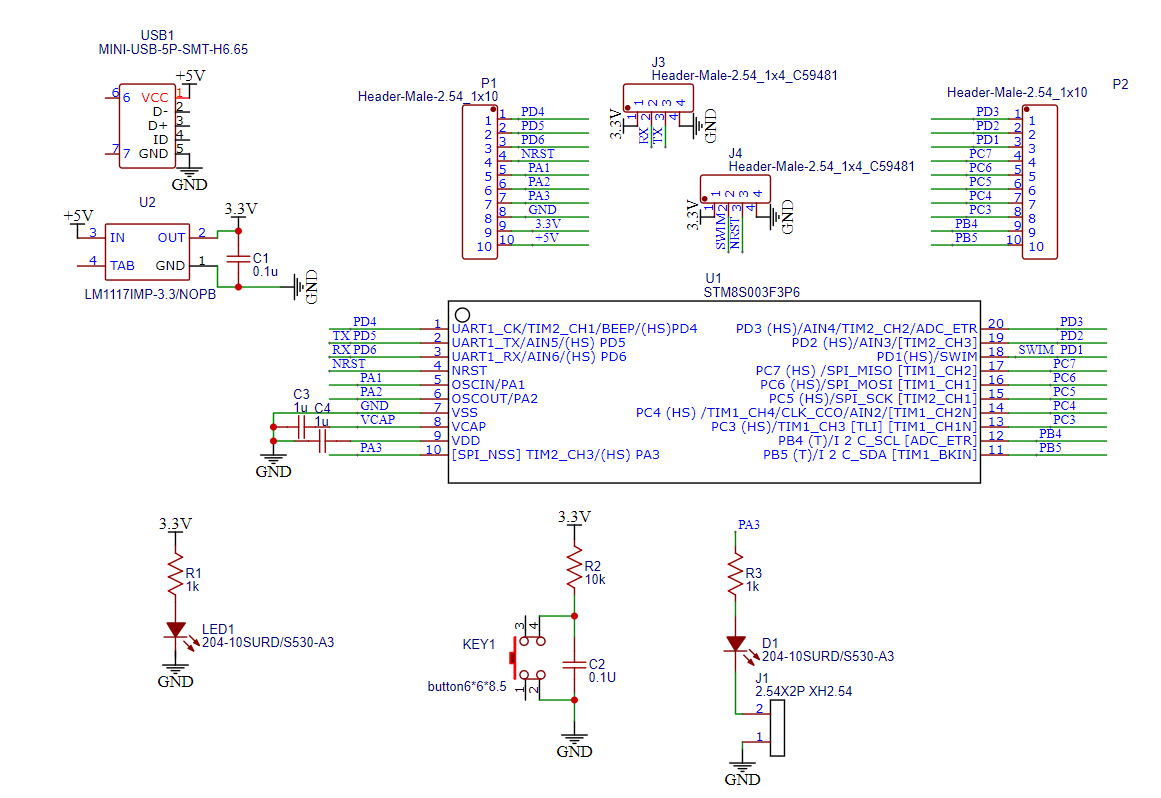

Figure6-STM8S003F3P6 Schematic
Alternative products for STM8S103F3P6 microcontroller are listed in below-
Microcontrollers from the STM8 family are available in a wide range from STMicroelectronics. Each MCU has unique benefits and drawbacks. Before choosing an MCU for a project, one must take into account a number of factors. The following ideas are merely suggestions that might aid in MCU selection.
A fantastic choice for a novice learning STM8 series microcontroller is an MCU with strong online community assistance and a broad range of applications. In that situation, STM8S103F3P6 is a wise choice. The STM8 series features a helpful online support community provided by STMicroelectronics.
Think about the system's operating voltage. Choose a 5V MCU if they are 5V. In these situations, a 3.3V MCU can be chosen. Some sensors or devices operate and communicate on 3.3V.
Small 8-pin MCUs like the STM8S001J3 are an option if cost and size are constraints. These are also considerably less expensive.
Verify which MCU modules you might require based on the sensors and actuators utilized in your project. For instance, if you need to read a lot of analog voltages, check that the STM8S103F3P6 series microcontroller you choose has adequate ADC channels and a good resolution.
Check to see if your STM8 microcontroller can support all of the communication protocols your project requires, such as UART, SPI, I2C, CAN, etc. Some MCUs are capable of supporting many modules for the same protocol.
The RFB-0505S is a DC-DC converter from RECOM Power, Inc., belonging to the RFB Series. It features a Single In-Line Package (SIP7) and provides a single unregulated output. This converter offers 1 watt of power with an output voltage of 5V and is rated for an isolation voltage of 1kV.
Read More >In the world of electronics, ensuring efficient power management is crucial for the performance and reliability of devices. One of the key components in achieving this is the DC-DC converter. Today, we dive into the specifics of the RFMM-0505S DC-DC converter, exploring its features, applications, and benefits.
Read More >A DC-DC converter is an essential electronic device to convert a direct current (DC) source from one voltage level to another. These converters are widely employed in various applications, including portable electronic devices, automotive systems, and renewable energy installations.

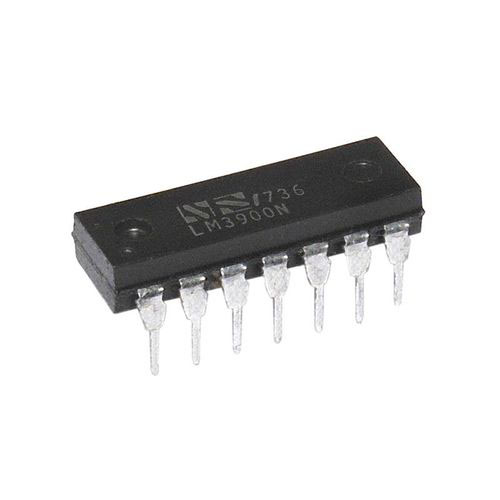

Read More >The LM3900 consists of four independent dual-input internally compensated amplifiers. These amplifiers are specifically designed to operate on a single power supply voltage and provide a large output voltage swing. They utilize current mirrors to achieve in-phase input functionality. Applications include AC amplifiers, RC active filters, low-frequency triangle waves, square wave, and pulse waveform generation circuits, tachometers, and low-speed, high-voltage digital logic gates.

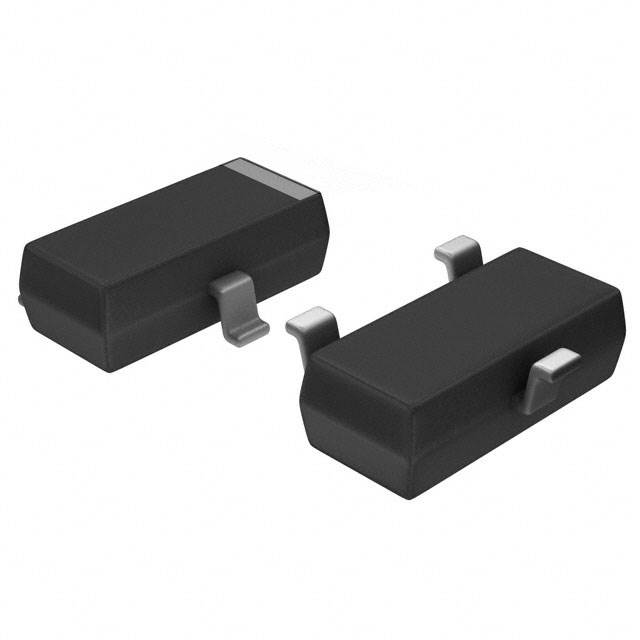

Read More >The goal of the Taiwan Semiconductor MMBT3906 PNP Bipolar Transistor is to provide a high surge current capability with minimal power loss. This transistor is perfect for automated installation and has high efficiency.
